  • 0 - 2,000 (kg)
  • 0 - 700 (mm)
  • 0 - 2,800 (mm)

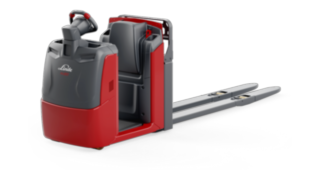

Order Pickers N20 C LX

Ergonomic Heavy-Duty Picking Solution

Simultaneous picking on two pallets at optimum operator height

With its scissor lift, the N20 C LX order picker is a powerful and ergonomic order picking solution and can lift and transport up to 2000 kilograms. During order picking, the operator comfortably lifts the forks to the optimum height to avoid unnecessary stress. This means that two Euro pallets can be filled at the same time to protect the back. The operator's platform can also be lifted as an option for occasional order picking on the second level. The construction of the mast and chassis prevents crushing injuries. In addition, the operator's platform offers good all-round visibility and can also be equipped with a panoramic mirror.

Characteristics

Safety

The N20 C LX order picker automatically adjusts its speed on bends, thereby increasing safety for the operator, the load and for pedestrians. Three braking systems ensure safety in all situations: the electromagnetic service brake, a hydraulically assisted braking system that reduces the speed proportionally to the weight of the load, and the Linde brake control which is automatically applied when the drive control is released. Additional safety is provided by the flattened contours of the chassis and the rounded operator's platform, as well as the automatic lane centring of the Linde steering wheel. LED front lights and the Linde BlueSpot™ can also visually announce the order picker.

  • Automatic speed adjustment on bends
  • Three different braking systems
  • Automatic lane centring with the Linde Steering Wheel
  • Rounded chassis

Ergonomics

The wide operator's platform, which is easily accessible from both sides of the vehicle and has a very low entrance, enables the operator to work short distances and with little fatigue. The special scissor lift design allows the operator to load both pallets at a height that is easy on the back and eliminates unnecessary movement. To further optimise efficiency, the mast controls and optional pedestrian controls for moving the vehicle are located on both sides of the backrest. The operator's compartment has various possibilities for the operator to adjust the vehicle to their requirements, including many storage areas. Both the ergonomic and intuitive Linde Steering Wheel and the backrest are height-adjustable. The backrest also has a foldable seating support. A dampened platform reduces vibration caused by uneven surfaces and a non-slip rubber pad improves the operator’s standing position.

  • Spacious access on both sides
  • Low entry height
  • Mast and pedestrian control on both sides
  • Height-adjustable steering wheel and backrest
  • Reduction of vibrations

Handling

The N20 C LX enables the fast and safe order picking of even heavy or long goods. Powered by a 3 kW three-phase AC motor, it accelerates quickly to top speed. With the Linde On-Board Charger, the handling effort for charging the battery is minimised. With the available lithium-ion battery, the operator can use work breaks to recharge the vehicle. A multifunctional display informs the operator of the current charge status of the order picker. Intuitive control symbols on the steering wheel show the functions of the most important commands at a glance. The operator's workstation also has storage areas, a bottle holder, and a knee guard that can be used as a paper compartment.

  • Powerful 3 kW three-phase AC motor
  • Steering wheel with intuitive controls
  • Linde on-board charger
  • Clear multi-functional display
  • Various storage areas and compartments

Service

The N 20 C LX scissor lift order picker requires only minimal maintenance: the vehicle runs for up to 1000 operating hours without service checks. The three-phase AC technology is maintenance free and there is no need to readjust the brakes. All service components are easily accessible to the technician after removal of the service panel. The essential vehicle parameters can be read out via a CAN bus connection via a laptop.

  • 1000 operating hours without service check
  • Maintenance-free three-phase electric motor
  • No readjustment of the brakes
  • Easily accessible service components
  • CAN bus connection

Videos & Images

A thumbnail from the video about the N20 C Series from Linde Material Handling

Technical Data

Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)
N20 C LX 2.0 (t) 700 (mm) 9 / 12 km/h 2675 / 2838 (mm) 24 / 420/465 (V)/(Ah) o. kWh

Optional Equipment

Liftable operator's platform

The operator platform can be lifted to allow occasional order picking at the first and second rack levels up to 2.8 metres picking height.

Fleet manager sitting in front of a desktop with Linde connect: the fleet management system from Linde Material Handling

Fleet management

With the Linde connect fleet management solution the use of the entire fleet of vehicles can be analysed in order to optimise the service or capacity utilisation of the truck fleet.

Two LED headlights of the order picker N20 C LX from Linde Material Handling

Front LEDs

The two LED headlights are located at the front and have a high brightness. They are waterproof and dustproof.

Cushioned platform

The pneumatically-cushioned construction reduces vibrations caused by uneven road surfaces.

Load backrest of the order picker N20 C LX from Linde Material Handling

Load backrest

An additional protection for the operator and load is the load backrest, which can be adapted to the height of the load.

The BlueSpot in front of the N20 C Order Picker

Linde BlueSpot™

The route warning systemLinde BlueSpot™increases safety in operation, as the LED spot makes trucks silently visible.

Lithium-ion technology

With Linde’s innovative lithium-ion batteries, trucks can be recharged in a much shorter time and intermediately charged during operation.

Pushbuttons on the side of the order picker N 20 C to operate the vehicle from the outside

Inching controls

There are pushbuttons on both sides of the vehicle, which the operator uses to operate the order picker from the outside, walking alongside at the same time. To avoid any safety risk to feet when going backwards, the trucks are equipped with a rear foot protection feature on both sides of the chassis.

Panoramic front mirror

A large mirror at the front of the vehicle provides a good all-round view and thus increases safety for the operator, load and pedestrians.

Lateral battery change

The lateral battery removal, by means of roller bearings, enables a quick change, especially for use in multi-shift applications.

Screen showing the shock values within the fleet management software from Linde Material Handling

Accident monitoring

Whether operating errors, uneven surfaces or improper vehicle use, a shock sensor registers shocks. Evaluating the data via Linde’s fleet management software provides insight into the cause of damage and accidents.

Slowed lowering

When the fork is fully loaded, the lowering speed is reduced. This provides additional protection against damage to the goods.

The access control units from Linde Material Handling

Access control

Access control via the connect fleet management system ensures that vehicles are only used by authorised personnel. The operator must identify him or herself with a PIN or RFID card before starting.
