Agility and excellent handling performance

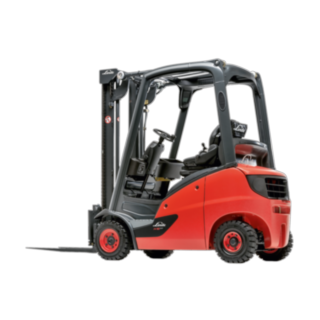

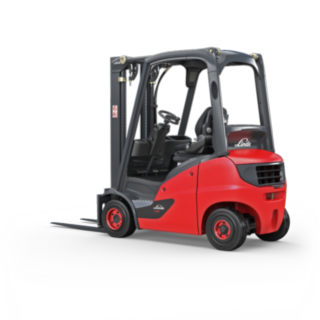

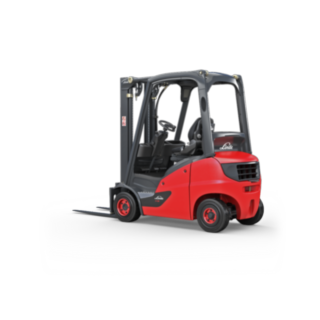

The H14 – H20 IC trucks from Linde are versatile, manoeuvrable and energy-efficient. With their compact external dimensions, these counterbalanced trucks are suitable for use in the tightest of spaces, such as at the conveyor, for vehicle loading and for shelf storage and retrieval. At the same time, they provide the operator with a spacious and ergonomic workspace with excellent visibility. The robust and reliable trucks can be individually equipped for any use. Their wide range of models, comprehensive standard level of equipment, numerous optional extras and attachments, and customer-specific solutions guarantee maximum versatility. These trucks are therefore a match for even the hardest conditions, for example in dusty environments, in multi-shift operation or as towing trucks. Thanks to their low fuel consumption and high availability, the total cost of ownership is especially low.
Characteristics
Safety
The Linde Protector Frame protects the operator: The cab roof and frame form a spacious, enclosed protection zone. A slim mast profile ensures that the operator has optimum sight of the load and the work environment ahead. This structure is made possible by the truck’s overhead tilt cylinder. Also important for vehicle safety is Linde Curve Assist. This system reduces speed on bends, thereby reducing the risk of the forklift tipping. The Linde Engine Protection System monitors important engine parameters such as oil pressure, coolant level and temperature; it warns the operator of impending engine damage and indicates when servicing is due.
- Linde Protector Frame
- Optimal all-round vision owing to slim mast profile
- Linde Curve Assist assistance system
- Linde Engine Protection System (LEPS)
Ergonomics
The operator benefits from a large cab with plenty of legroom. Key factors in reducing work fatigue are comfortable seats, the ergonomic operation concept and the highly visible display of important vehicle information. The operator has precise and sensitive control of all mast and lifting movements from the fingertips, with the arm resting relaxed on the armrest. In addition, the mast and axles are isolated from the cabin by rubber bearings. This means that virtually no vibrations or shocks are transmitted to the operator.
- Spacious cab with ample leg room
- Hydraulic seat springs
- Ergonomic operation concept
- Decoupled operator’s workspace
Handling
The hydrostatic direct drive guarantees sensitive, smooth and precise movement, assisted by strong diesel, LPG or natural gas motors that provide high torque with minimal fuel consumption. The trusted Linde dual-pedal control ensures efficient handling. Last but not least, all functions of the mast can be controlled right down to the last millimetre thanks to Linde Load Control. This allows for significant productivity gains in the transporting and warehousing of loads.
- Hydrostatic power unit for precise movements
- Powerful motors
- Dual-pedal control for efficient handling
- Precise mast movements with Linde Load Control
servicing,
Linde IC trucks are outstanding for their very long service intervals, with the first check only carried out after 1000 operating hours have been clocked. After 3000 operating hours, service technicians check the tilt cylinder and suspension elements, and replace the ventilation, pressure and suction filters. The hydraulic oil only needs to be changed after 6000 hours. These long intervals are made possible thanks to a number of design details, including new high-performance filters and maintenance-free components on the tilt cylinder. The hydrostatic direct drive is maintenance-free, too. When a service is required, the components are readily accessible to the service technician. Rapid diagnosis can be made using a laptop.
- Long maintenance intervals
- Maintenance-free hydrostatic power unit
- Easily accessible maintenance components
- Diagnosis by laptop
Technical Data
| Model | Load capacity/Load | Load centre distance | Wheelbase | Aisle width with pallet 800 x 1200 along forks | Travel speed, with/without load |
|---|---|---|---|---|---|
| H16CNG | 1.6 (t) | 500 (mm) | 1600 (mm) | 3886 (mm) | 20 / 20 km/h |
| H16D | 1.6 (t) | 500 (mm) | 1600 (mm) | 3886 (mm) | 20 / 20 km/h |
| H16T | 1.6 (t) | 500 (mm) | 1600 (mm) | 3886 (mm) | 20 / 20 km/h |
| H18CNG | 1.8 (t) | 500 (mm) | 1600 (mm) | 3891 (mm) | 20 / 20 km/h |
| H18D | 1.8 (t) | 500 (mm) | 1600 (mm) | 3891 (mm) | 20 / 20 km/h |
| H18T | 1.8 (t) | 500 (mm) | 1600 (mm) | 3891 (mm) | 20 / 20 km/h |
| H20CNG | 2.0 (t) | 500 (mm) | 1600 (mm) | 3895 (mm) | 20 / 20 km/h |
| H20CNG-CT/600 | 2.0 (t) | 610 (mm) | 1600 (mm) | 3895 (mm) | 16 / 16 km/h |
| H20D | 2.0 (t) | 500 (mm) | 1600 (mm) | 3895 (mm) | 20 / 20 km/h |
| H20D-CT/600 | 2.0 (t) | 610 (mm) | 1600 (mm) | 3895 (mm) | 16 / 16 km/h |
| H20T | 2.0 (t) | 500 (mm) | 1600 (mm) | 3895 (mm) | 20 / 20 km/h |
| H20T-CT/600 | 2.0 (t) | 610 (mm) | 1600 (mm) | 3895 (mm) | 16 / 16 km/h |
Optional Equipment
-
Radio with Bluetooth speakerphone
-
Air conditioning*
-
Various seat options
-
LED strips
-
Visual warning systems
-
Linde Safety Pilot
-
Full cabin
Radio with Bluetooth speakerphone
The DAB+ radio has fascia connections for USB and Bluetooth®, along with two loudspeakers and an additional antenna.
Air conditioning*
The powerful air-conditioning system (which contains fluorinated hydrocarbons) with integrated heating and pollen filter guarantees a comfortable working environment in the cab all year round, whilst also preventing windows from fogging up.
*contains fluorinated hydrocarbons
Various seat options
For maximum comfort, various seats are available. These have different equipment characteristics such as seat heating, lumbar support, air-cushioning, active seat ventilation and various adjustment functions.
LED strips
The two-colour LED strips provide an even and extensive illumination of the working area. They illuminate the truck’s direction of travel with white light.
Visual warning systems
Light-based warning systems such as Linde TruckSpot™ and Linde BlueSpot™ project warning signs or coloured spots of light onto the floor to warn pedestrians and other trucks, even at junctions with impaired visibility.
Linde Safety Pilot
The Linde connect operator assistance system has many functions to improve safety and efficiency, include a display of the maximum load weight, maximum permitted lifting height and speed.
Full cabin
The comfort cab protects the operator when working outdoors and its generously sized glass panes provide outstanding all-round visibility of the load and working environment.
