Linde Load Management Advanced for pallet trucks

Assistant for the safe handling of goods

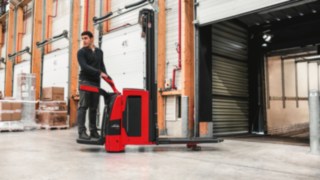

Linde pallet truck with Linde Load Management assistance system

Protecting people and goods

Operator errors are the most common cause of accidents in intralogistics. The risk of accidents rises with the continuously increasing workload. Pressure to work faster and more productively can also lead to stress and fatigue. The result: a decrease in concentration and, in the worst case, serious accidents.

Even at full concentration, it is often challenging for pallet truck operators to correctly assess a dangerous situation: How heavy is the current total load? How much higher can the load be lifted? What speed is suitable for the load weight and lifting height?

The assistance system Linde Load Management Advanced has the answer to exactly these questions; it warns the operator and can even intervene if necessary.

Functions at a glance

Visible warning, active control

The Linde Load Management Advanced assistance system makes load handling with pallet trucks easier and safer. It gives the operator clear visual and acoustic warning signals on a large colour display. If the actual load weight exceeds the maximum load capacity, the lifting function is automatically disabled to prevent critical situations. In addition, Linde Load Management Advanced actively controls the driving speed and acceleration based on the lifting height, load weight and steering angle. The system follows a risk-dependent sequence:

1. Warning when approaching the limit range

A yellow warning symbol indicates that the load limit is being approached and a warning tone sounds at the same time. The operator of the pallet truck can see the current height on the display, as well as the maximum possible height permitted for the current load weight.

2. Warning when the residual capacity is reached

When the load limit is reached, a warning appears which the operator must acknowledge to continue handling the goods. They are therefore aware that safe handling will no longer be guaranteed.

3. Warning and blocking of the lifting function

If the operator exceeds the payload, a red warning symbol appears and a warning tone sounds. Additionally, the lifting function is disabled.

Pallet truck with Linde Load Management Advanced assistance system display

Load Management Advanced in practice

Assistance in day-to-day handling

Employees often have little experience when it comes to the handling of large, heavy and long goods with differing dimensions. If the operator makes a mistake when calculating the residual load capacity, this can quickly turn into a safety risk for them or other employees in the warehouse. It is extremely laborious to use a payload diagram to calculate the height up to which the goods may be lifted. However, if employees rely only on their intuition, the truck could tip over in the worst case. Operating errors can also quickly occur when transporting or manoeuvring the load, for example if the operator drives with the load raised or the tiller is turned in too abruptly.

Everything under control

Linde Load Management Advanced shows the relevant load information on a large, colour display: both the actual weight on the fork arms and the current and maximum permitted lifting height. It also warns the operator when the fork arms are near the maximum payload. If the operator nevertheless raises the fork arms further, the lifting function is switched off, thus preventing a safety-critical situation. The operator can now no longer raise the fork arms but instead only lower them.

To prevent the loaded fork arms from being stuck in the racks at a height of several meters, it is possible to remove the lock and lift the load further. To do this, the operator must first actively confirm the warning notice.

Real-time speed control

The precise information on load weight and lifting height is also used to adjust the acceleration and travel speed of the pallet truck based on the steering angle, load weight and lifting height. This prevents the operator from moving the tiller too abruptly at higher speeds or accelerating too fast with the load lifted. Both manoeuvres would place the truck in an unstable position.

Benefits at a glance

Determines residual load capacity

Assistance for the operator and immediate warning when approaching the load limit.

Optimises driving speed

Enables safe working in any situation, minimises the risk of accidents and provides support close to the load limit range.

Display information

Everything at a glance: Transparency with regard to the actual load weight and the maximum load height.

Safe and efficient

The system increases safety and at the same time ensures efficient handling.
