Ergonomic platform solution for fast processes

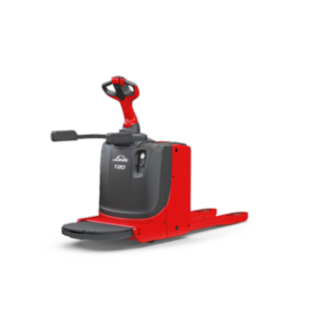

The T16 P and T20 P pallet trucks from Linde Material Handling guarantee fast transport processes over shorter and medium distances. The highly responsive 1.2 kW engine very quickly reaches its maximum speed of six kilometres per hour – with and without load. In addition, the tandem load wheels ensure a good drive even on uneven ground. Service technicians can configure important operating parameters such as maximum acceleration to make the truck even more suitable for individual requirements. As a result, processes run more efficiently and safely. If necessary, the operator can fold up the stand-on platform. This turns the low-platform truck into a pedestrian model. The T16 P model has a load capacity of 1600 kilograms, while the T20 P transports a maximum of 2000 kilograms.
The T16 P and T20 P pallet trucks have four independent braking systems which guarantee the safety of the operator and load in different situations. The truck brakes automatically when the operator releases the butterfly switch or alternatively moves the tiller all the way up or down. In addition, the electromechanical brake is triggered when the reversing switch or emergency stop button is actuated – in the second case, all circuits are also interrupted. The large tiller head encloses the hands and protects them from injury. If the tilted at an angle, on a ramp for example, it does not roll back when starting off.
- Four independent braking systems
- Reverse switch
- Emergency stop button
- Hand protection
The low pallet truck's one-piece platform and special tiller structure absorbs all shocks and vibrations which may put a strain on the operator. The controls are ergonomically located on the tiller head and are easy to operate with both hands. In addition, handling is carried out effortlessly using the fingertips. The stand-on platform can be folded up and down as required. An easily accessible storage compartment is available for work materials.
- Dampening via platform and tiller
- Easily accessible control elements
- Foldable platform
- Storage compartment
The T16 P and T20 P pallet trucks have a powerful 1.2 kW engine and can reach speeds of up to six kilometres per hour. In combination with Linde LAC digital control and the mechanical controls, this drive ensures very fast and precise processes. A service technician can adapt central performance values such as acceleration to the individual application. The operator has a good view of the fork tips. This facilitates direct entry into pallets, for example.
- Powerful 1.2 kW engine
- Linde LAC digital control
- Configurable performance values
- Good visibility of fork tips
During the development of the vehicle, Linde attached great importance to low-cost maintenance routines: Many elements are maintenance-free, service technicians can easily reach all central components and fast computer-aided diagnostics are carried out via CAN bus. The stable engine and battery cover, robust chassis and durable fork tips ensure long operating times without the need for maintenance.
- Easily accessible components
- CAN bus structure
- Sturdy engine and battery cover
- Robust chassis
- Durable fork tips
|Model||Load capacity/Load||Lift||Travel speed, with/without load||Turning radius||Battery voltage/rated capacity (5h)|
|T16P||1.6 (t)||125 (mm)||6 / 6 km/h||1670 / 1734 (2010 / 2075) (mm)||24 / 250 (V)/(Ah) o. kWh|
|T20P||2.0 (t)||125 (mm)||6 / 6 km/h||1670 / 1734 (2010 / 2075) (mm)||24 / 250 (V)/(Ah) o. kWh|
Users can configure the vehicle for their application with a wide range of fork lengths and widths.
Polyurethane drive wheels and load wheels are available for the T16 P and T20 P pallet trucks. The material is quiet, very durable and has good running properties. It does not leave tracks on light-coloured floors.
The brackets are easy to fold out and give the operator additional stability when cornering or on uneven ground.
