Precise movement of light to medium loads

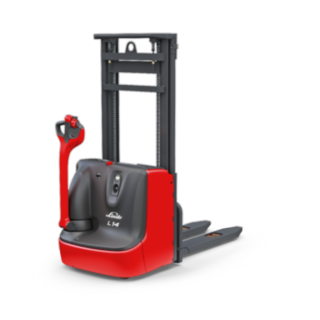

The L14 C pallet stacker is a flexible and efficient handling solution for the transport of pallets, gitter or pallet boxes. With the help of the OptiLift mast control, the storage and retrieval of light to medium-weight goods can be carried out smoothly, precisely and quietly. All control elements of the ergonomic tiller head can be conveniently operated with both hands. A hand guard on the tiller head protects the operator from injury. At the same time, the long and low mounted tiller arm ensures that it is at a safe distance from the truck. An effective parking brake holds the truck securely on a slope. A maintenance-free AC engine reduces operating costs. The L14 C pallet stacker transports loads with a total weight of up to 1,400 kilograms.
The long tiller arm is attached very low down on the vehicle. This ensures a large safety distance between the operator and the vehicle frame. In addition, the tiller head effectively shields the hands and the low chassis prevents the feet from getting under the vehicle. The L14 C stops quickly when the operator releases the butterfly button or operates the belly switch. In addition, the mechanical brake acts when the tiller is in vertical and horizontal position. An optional creep speed button makes manoeuvring easier and prevents collisions when space is limited, for example. With the parking brake, the L14 C is always safe, even on slopes.
- Long tiller arm
- Low chassis
- Automatic braking
- Anti-collision belly switch
- Creep speed
- Parking brake
The pallet stacker can be easily operated with both hands: all control elements are located in an ergonomic and large tiller head. It can even be operated while wearing thick gloves – while working in a cold store, for example. The narrow mast guarantees good visibility of the load at all times. There is also a practical storage compartment for everyday work utensils.
- Ergonomic and large tiller head
- Good view of the load
- Practical storage compartment
The L14 C pallet stacker combines a powerful 1.2 kW AC engine with precise mechanical steering to ensure fast transport processes. Even when loaded, the truck is therefore able to reach a speed of six kilometres per hour. The speed varies depending on the position of the tiller. With the OptiLift function, the operator can effortlessly control the lifting and lowering of the load with a light finger movement. A service technician can adjust the operating parameters, such as the maximum speed, to suit the respective application. This simplifies many individual processes.
- 1.2 kW AC engine
- Mechanical steering
- OptiLift function
- Adjustable operating parameters
The AC engine requires no maintenance and thus reduces operating costs. The service technician can easily read off all vehicle data via CAN bus. In addition, all components are easily accessible – many service processes therefore run very quickly. The mast channels are made of high-quality rolled sections. This ensures a long service life. The same applies to the robust chassis, the stable engine cover and the cast steel rear apron.
- Maintenance-free motor
- CAN bus connection
- Easily accessible components
- High-quality mast channels and chassis elements
|Model||Load capacity/Load||Lift||Travel speed, with/without load||Turning radius||Battery voltage/rated capacity (5h)|
|L14C||1.4 (t)||2924 (mm)||6 / 6 km/h||1522 (mm)||24 / 225 (V)/(Ah) o. kWh|
The wide range of fork lengths and widths allows users to configure the vehicle for their specific application.
A creep speed function facilitates manoeuvring in narrow aisles or when space is limited.
Polyurethane drive wheels and load wheels are available for the L14 C pallet stacker. The material is quiet, very durable and has good running properties. It does not leave tracks on light-coloured floors.
