Agile with two pallets

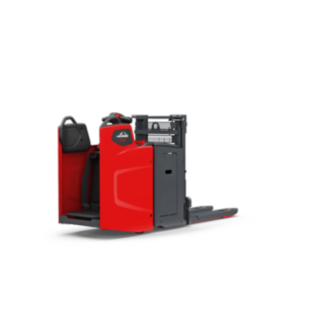

The D10 FP pallet stacker is a compact and powerful double deck loader. With a chassis width of just 720 mm and electric power steering, it is extremely manoeuvrable even in the tightest of spaces. It is therefore particularly suitable for loading and unloading and for medium-to-long pallet transfer. The powerful 2.3 kW engine enables powerful acceleration up to 10 km/h (6.2 mph). The D10 FP can pick up two pallets at the same time, which guarantees maximum handling performance. The truck is equipped with a steel chassis skirt to protect the operator from minor impacts.
Characteristics
Safety
When working with the D10 FP double-deck pallet stacker, the operator remains within the protective truck contours at all times, so there is no risk of injury even when manoeuvring in confined spaces. The truck is also equipped with a steel chassis that extends to the ground to protect against minor collisions. Independently operating braking systems ensure the load and operator are kept safe. The entire operator's platform is designed to act as a dead man's switch. As soon as the operator leaves the truck, it brakes automatically. When cornering, the truck automatically adjusts the speed to prevent tipping accidents.
- Steel chassis for operator protection
- Independent braking systems
- Operator's platform acts as a dead man's switch
- Adapted speed when cornering
Ergonomics
The ergonomically shaped handle of the D10 FP double-deck pallet stacker can be effortlessly operated with both hands, ensuring precise and comfortable load handling. The padded backrest offers additional comfort and ensures that the operator can work in a comfortable posture throughout the entire shift. The height of the control handle can be adjusted to suit the operator's physical requirements. As an option, the operator's platform can be decoupled from the chassis and suspended, so that shocks are not transmitted to the operator on uneven road surfaces. Spacious storage compartments provide ample space for important working materials.
- Ergonomic, height-adjustable control handle
- Padded backrest
- Optional fully suspended operator's compartment
- Large storage compartments for work tools
Handling
The D10 FP double-deck pallet stacker can transport two pallets simultaneously and has a combined lifting capacity of 2000 kilograms (1 t/1 t). Thanks to its narrow design and electric power steering, the truck is extremely agile and can be easily manoeuvred in the tightest of spaces. The powerful 2.3 kW engine provides acceleration up to 10 km/h (6.2 mph). The optional Speed Management optimises the speed depending on the load weight on the upper fork. Depending on the task, the D10 FP can be equipped with different mast types. The maximum mast height is 2424 mm. Optional support wheels mounted to the left and right of the drive wheel provide additional traction and stability.
- Efficient transport of two pallets
- Outstanding manoeuvrability
- Powerful acceleration
- Different mast variants
Service
A robust construction and the operation’s maintenance-free AC technology enable long maintenance intervals and guarantee high truck availability. If maintenance work is required, the CAN bus connection of the D10 FP ensures simple service processes: The service technician reads the truck's system data and analyses it quickly and easily via laptop. All truck components are easily accessible so that service work can be carried out effortlessly. An optional digital instrument display provides the operator with an overview of all relevant truck information at all times.
- Fast diagnostics through CAN bus connection
- Maintenance-free drive technology
- Easy maintenance access
- High truck availability
Videos & Images
Technical Data
| Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Battery voltage/rated capacity (5h) |
|---|---|---|---|---|---|
| D10FP | 1.2 / (2.0) (t) | 1574 (mm) | 10 / 10 km/h | 2293 (2363) (mm) | 24 / 345/375 (V)/(Ah) o. kWh |
Optional Equipment
-
Fleet management
-
Lithium-ion technology
-
Level compensation
-
Load backrest
-
Fully suspended operator's platform
-
Height-adjustable control handle
-
Speed optimisation
Fleet management
How and by whom are the individual forklifts used? What does the truck consumption data look like and is each individual truck roadworthy? With a combination of software and hardware,connect: fleet management from Linde provides the answers.
Lithium-ion technology
With Linde’s innovative lithium-ion batteries, trucks can be recharged in a much shorter time and intermediately charged during operation.
Level compensation
The system compensates for any unevenness in the ground and ensures that all wheels remain in contact with the ground at all times, thereby ensuring the truck remains stable.
Load backrest
The load guard provides additional protection for operator and load and can be adapted to the height of the load.
Fully suspended operator's platform
The optional fully suspended platform helps reduce the physical strain on the operator’s body by absorbing shocks caused by uneven surfaces.
Height-adjustable control handle
The height-adjustable control handle allows the truck to be perfectly adapted to the operator's physical requirements.
Speed optimisation
The Linde Speed Management increases the performance of the truck when used for double-deck loading. The pallet stacker's speed is optimised according to the weight of the load on the free lift.
