Perfect ergonomics, quick work processes

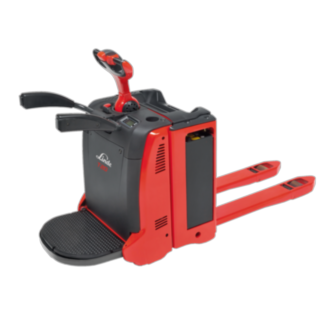

The T20 - T25 AP/SP pallet trucks offer tailored ergonomic working conditions for the operator. Linde's basic concept is flexible. In the AP model, the operator can move the standing platform up, and fold down the steering tiller. The platform truck changes into a full-service pedestrian model as needed. In contrast, the SP mode has a fixed standing platform.
The truck has an e-driver controller from Linde, with which the operator stands at a right angle to the direction of travel and can see both forward and backward. Many manoeuvres are therefore much easier and can be done more quickly. The pallet trucks have a maximum lifting capacity of 2000 or 2400 kg depending on the model. Lithium-ion batteries are also available.
A solid steel skirt reaching to the floor absorbs slight impacts and protects the operator's body. The compact design of the steering unit ensures that the operator always stays inside the solid body of the truck when driving.
Both models have three independent braking systems ensuring the safety of the operator and the load in every driving situation. If the operator takes their foot off of the drive switch, the electromagnetic braking system activates automatically. The same applies if the dead-man switch is released or the emergency stop activated.
- Solid steel skirt
- Compact steering design
- Three independent braking systems
In the SP model, the driver stands at a right angle to the fork direction, about 45 degrees. This position makes it easier for them to see around them. It is not necessary to twist their body when reversing, placing strain upon it.
The padded backrest offers additional comfort. The standing platform is also heavily padded, so that the operator does not have to sway on uneven ground; this provides important protection from physical strain. With both models, the operator benefits from precise power steering which can be operated without straining. They can also access broad, deep storage compartments. The operator can therefore always access the tools they need.
- Turned standing position at 45 degrees
- Deep storage compartments
- Padded backrest
- Cushioned standing platform
The pallet truck T20 - T25 AP/SP can reach a maximum speed of ten kilometres per hour with and without loads and can also manage a gradient of up to 13 percent. The interplay of the 3 kW three-phase motor and active support wheels enable the truck to accelerate quickly and powerfully. The hydraulic suspension of the wheels adapts to the load, driving situation, and speed and ensures consistent stability and traction. When the truck is on a gradient, a hill hold system ensures that the truck does not roll backwards.
The Linde e-driver controller is important for increasing handling activities in the SP version. The compact steering wheel contains all of the controls and can be quickly operated with the left or right hand.
- Powerful three-phase motor
- Active support wheels
- Start assistant for starting up on gradients
- e-driver controller
The CAN bus structure of the pallet trucks make the service process easier. The technician connects his notebook and can then see all the truck data. They can reach all truck components quickly.
The three-phase electric motor technology is maintenance-free. In addition, rugged construction ensures that the truck can withstand tough, continuous use and only has to be serviced occasionally. Each fork carries up to 2000 kg without bending and the entire truck is made of cast steel.
- Truck data readouts via CAN bus connection
- Maintenance-free three-phase technology
- Rugged construction for low service costs
- Easily accessible service components
|Model||Load capacity/Load||Lift||Travel speed, with/without load||Turning radius||Battery voltage/rated capacity (5h)|
|T20AP||2.0 (t)||125 (mm)||10 / 10 km/h||1622 / 1959 (mm)||24 / 250 (V)/(Ah) o. kWh|
|T20AP ION||2.0 (t)||125 (mm)||10 / 10 km/h||1622 / 1959 (mm)||24 / 205 (V)/(Ah) o. kWh|
|T20SP||2.0 (t)||125 (mm)||12 / 12 km/h||2019 (mm)||24 / 250 (V)/(Ah) o. kWh|
|T20SP ION||2.0 (t)||125 (mm)||12 / 12 km/h||2019 (mm)||24 / 205 (V)/(Ah) o. kWh|
|T25AP||2.5 (t)||125 (mm)||10 / 10 km/h||1622 / 1959 (mm)||24 / 250 (V)/(Ah) o. kWh|
|T25AP ION||2.5 (t)||125 (mm)||10 / 10 km/h||1622 / 1959 (mm)||24 / 410 (V)/(Ah) o. kWh|
|T25SP||2.5 (t)||125 (mm)||12 / 12 km/h||2019 (mm)||24 / 250 (V)/(Ah) o. kWh|
|T25SP ION||2.5 (t)||125 (mm)||12 / 12 km/h||2019 (mm)||24 / 410 (V)/(Ah) o. kWh|
Battery changing stands
Cold store protection
The drive wheel is available in non-marking rubber or polyurethane. The material is quiet, very durable, and has good rolling properties. There are also wheels with a Wet-Grip surface.
Battery changing stands
The stands hold up to two batteries. A battery fits on the mobile changing stands.
Terminals, clipboard, or an LED working lamp can be mounted on the cockpit.
Linde offers various forks in different lengths and widths.
Cold store protection
Using this version, the user can operate the pallet truck at external temperatures down to -35 degrees Celsius.
The backrest stabilises the load and prevents the pallets from sliding.
Single or tandem rollers made from polyurethane are available. The material is quiet, very durable, and has good rolling properties. It leaves no marks on light floors.
The maximum speed of both models has been increased to 12 kilometres per hour.
The access control in Linde's connect: system informs fleet management who is sitting behind the wheel of which truck. The operator must identify themselves using a PIN or a RFID card before they can start the truck.
