Manoeuvre and transport materials in narrow aisles safely and with agility

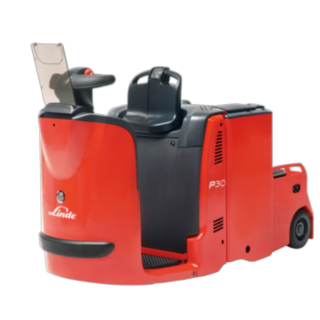

Linde Material Handling's P30 electric tow tractor and platform truck are perfect for flexible and safe transport over short and medium distances; even (and especially) when there is very little space available. The truck features precise self-centring power steering that the operator safely controls using the ergonomic two-handled steering unit. In addition, the P30's compact design makes manoeuvring narrow aisles easier. The powerful three-phase motor accelerates quickly to its maximum speed. For comfort and stability while driving, the trucks are equipped with an adjustable backrest and a full-suspension standing platform with a nonslip floor covering. The P30 has a maximum load capacity of three tons. It can reach a maximum speed of 10 kilometres per hour.

Characteristics

Safety

The compact design of the steering unit prevents wide-sweeping movements, increasing operator safety. . While operating, the operator always remains within the protective confines of the truck, behind a four-millimetre-thick steel chassis. In addition, the ergonomic steering unit handles provide a safe grip and protect the hands. The nonslip floor covering also increases the stability of the operator. When cornering, the truck automatically reduces its speed. Hill-start assist prevents the P30 from rolling backwards on gradients.

  • Compact steering unit design
  • Thick steel chassis
  • Nonslip floor covering
  • Curve assist
  • Start driving on uphill gradients without rolling backwards

Ergonomics

A full-suspension platform and an additional cushioned foot mat prevent the operator from experiencing strong vibrations. Additionally, the operator can adjust the backrest to his or her exact height to relieve strain on the back while driving. Wide, spacious storage compartments are available so that the operator can always have all of his or her tools close at hand. All control elements are intuitive and ergonomic, making them easy to use.

  • Height-adjustable operator's seat
  • Large storage compartments
  • Full-suspension platform
  • Cushioned foot mat

Handling

The P30 features a powerful 3-kW three-phase motor, which accelerates quickly to its maximum speed, even when the truck is pulling its maximum three-ton load capacity. This provides increased handling performance even during rigorous continuous operation, together with effective brakes, which ensure that the truck comes to a stop quickly. Precise power steering and compact design are also important. Power steering simplifies many manoeuvres when limited space is available.

  • Maximum speed with and without a load
  • Effective brakes
  • Precise power steering
  • Compact design

Service

The truck undergoes a quick service test after every 1000 operating hours. The technician then reads all of the truck's data using the CAN bus interface and checks it on a laptop. The relevant service components can then be easily accessed. The three-phase motor is maintenance-free.

  • Long intervals between service
  • CAN bus interface
  • Maintenance-free three-phase motor

Optional Equipment

Tires & wheels

Drive wheels made out of solid rubber come as standard. As an alternative to the standard option, tow tractors can be equipped with solid rubber, non-chalking and nonslip wheels or polyurethane wheels.

Front bracket

The bracket is located directly above the steering unit and can be used to hold a data terminal or a bar code reader.

Handrail

The rail is mounted behind the seat. A data terminal, clipboard, bar code reader, waste container, or drink holder are examples of things that can be found on the rail.

Equipment for cold conditions

For use in cold storage facilities, the truck can be equipped with specially protected components and lubricants that can withstand temperatures as low as -30° C (-22° F).

Creep-speed buttons

Creep-speed buttons on both sides of the truck make it easier to hitch a trailer properly and safely.

Lights

There are different truck models available with front headlights, a flashing warning light on a pole behind the seat, and tail lights.

Metal rack

The rack has three sections that can hold computer equipment, such as a data terminal or a bar code reader.

Adjustable steering unit

The height of the steering unit can be adjusted to the size and position of the operator, ensuring even more ergonomic working conditions.

Lateral battery replacement

The battery can be replaced from the left or right side of the truck. A latch holds the battery safely in place in the battery compartment.

Types of batteries

Linde offers a wide selection of high and low capacity batteries for the truck, from 270 Ah (3 PzS) to 620 Ah (4 PzS).

Other battery equipment

Linde offers external chargers for batteries of all sizes. They also offer a sturdy battery stand that can hold up to two batteries.
