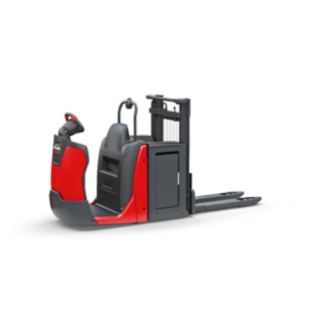

Order Pickers N20 D, N20 D HP

Powerful double-deck order picker

Picking and transporting on two levels

The N20 D and N20 D HP double-deck order pickers enable the simultaneous loading and transport of two pallets. Thanks to the ergonomic lift, the operator can also pick heavy goods at a height that is easy on the back. The two separate levels allow heavy and pressure-sensitive goods to be stowed and transported. The N20 D HP high-performance version is also optimally balanced with ground contact via five points and guarantees maximum stability even at speeds of up to 12 km/h. The operator platform is fully suspended on all forklift trucks and therefore reduces vibrations while operating.

Characteristics

Safety

To reduce risks while operating, all edges of the robust steel chassis are rounded. Speed is automatically reduced when cornering. At the front of the forklift truck there is a steel bumper, which can optionally be supplemented by a rubber layer. Since the battery is located behind the operator platform, the operator always has a good view of the storage environment. Optional front LED and the Linde BlueSpot™ also provide visual notification of the truck. The Linde steering wheel protects the hands and centres itself when operating straight ahead. It only needs to be moved slightly to steer and can also be operated with one hand. When the load is lowered, the fork automatically stops 30 centimetres above the ground and the rest must be lowered from the operator platform. This prevents the operator from accidentally placing a foot under the fork.

  • Rounded edges
  • Automatic speed reduction in curves
  • Steel and rubber bumpers
  • Self-centring steering
  • Safe fork-lowering mechanism

Ergonomics

The low-lift order pickers have a low access height of only 13.7 centimetres, which makes frequent entry and exit easier. The wide, U-shaped design also facilitates access from both sides. For very short distances, the operator conveniently controls the truck via pedestrian operation, from which the initial lift can also be operated. When reversing or when the operator gets on, an additional handle on the backrest ensures optimum support. The Linde steering wheel and the backrest with fold-out seat are optionally height-adjustable. The entire platform is spring-loaded to minimise vibrations and shocks.

  • Low and wide access
  • Pedestrian function operable from both sides
  • Additional handle on the backrest
  • Spring-loaded platform

Handling

Depending on the operating mode, the 3 kW three-phase AC motor accelerates rapidly to a maximum speed of up to 12 km/h. Thanks to the ergonomic lift, operators can fill two pallets simultaneously and transport pressure-sensitive goods separately. The Linde steering wheel offers a special innovation: it enables the intuitive execution of important operating functions and is easy to control. When operating straight, the self-centring steering system ensures shorter distances between two picking positions. An initial lift function facilitates transport over ramps and bumps. The multifunction display informs the operate of the current status of the forklift truck. Optional lithium-ion batteries are available for even more efficient charging - even during breaks. Shelves and compartments ensure that operators always have their documents at hand from all positions.

  • Powerful 3 -kW three-phase AC motor
  • Intuitive Linde steering wheel with comfortable power steering
  • Initial lift function for transport over ramps
  • Clear multifunctional display
  • Shelves and compartments for equipment
  • Ergonomic lift enables the transport of two pallets at the same time.

Service

Linde Material Handling keeps service costs down with low-maintenance components: the three-phase AC technology is completely maintenance-free and there is no need to readjust the brakes. A service check is only required after 1,000 operating hours. The service technician has free access to all main components and can easily open the motor cover. Cable harnesses and cables are clearly arranged. Truck data can be quickly read out on a notebook via a CAN bus connection and provide information on failures and error messages.

  • Maintenance-free three-phase AC technology
  • Adjustment-free brakes
  • 1,000 operating hours without servicing
  • Fast diagnostics via CAN bus connection

Videos & Images

New Linde N20 series

Technical Data

Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)
N20 D 1.2 / 0.8/1.2 / 2.0 (t) 1924 (mm) 10 / 12 km/h 2445 / 2515 (mm) 24 / 345/375 (V)/(Ah) o. kWh
N20 D HP 1.2 / 0.8/1.2 / 2.0 (t) 1924 (mm) 10 / 12 km/h 2445 / 2515 (mm) 24 / 345/375 (V)/(Ah) o. kWh

Optional Equipment

The dashboard of the fleet management software Linde connect from Linde Material Handling

Fleet management

The Linde connect fleet management solution allows, among other things, for the usage of trucks to be analysed in order to optimise the servicing or utilisation of the fleet.

N20 order picker from Linde Material Handling with a front LED light

Front LED

The LED light is located in the front and has a high level of brightness. It is water- and dust-proof.

The load backrest for the N20 order pickers from Linde Material Handling

Load backrest

An additional protection for operator and load is the load backrest, which can be adapted to the height of the load.

The BlueSpot™ from Linde Material Handling for the N20 order pickers

Linde BlueSpot™

The Linde BlueSpot™ route warning system increases safety in operation, as the LED spot makes trucks silently visible.

The N20 order pickers from Linde Material Handling with lithium-ion batteries

Lithium-ion battery

The innovative lithium-ion technology means that the batteries can be fully recharged in around 1.1 hours at room temperature.

Pedestrian controls for the N20 order picker from Linde Material Handling

Pedestrian controls

On both sides of the forklift truck there are pushbuttons on the lift mast. The operator uses them to operate the order picker from the outside and walks alongside at the same time.

Lateral battery change for the N20 order pickers from Linde Material Handling

Lateral battery change

The lateral battery removal by means of roller bearings enables a quick change, especially for use in multi-shift applications.

Rubber bumper for the N20 order picker from Linde Material Handling

Rubber bumper

The rubber bumper reduces shocks in the event of a collision, thus protecting operator, forklift and infrastructure such as racks.

Records from the shock sensors in the fleet management software Linde connect

Accident monitoring

Whether driving errors, uneven surfaces or improper forklift use – a shock sensor registers shocks. The evaluation of the data via the fleet management software provides information on the cause of damage and accidents.

Access control for the N20 order pickers from Linde Material Handling

Access control

Access control via the connect fleet management system ensures that forklift trucks are only used by authorised persons. The operators must identify themselves by PIN or RFID card before the forklift truck is started.
